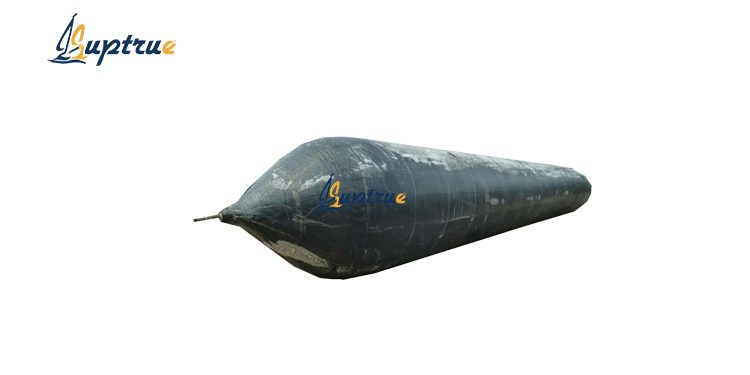

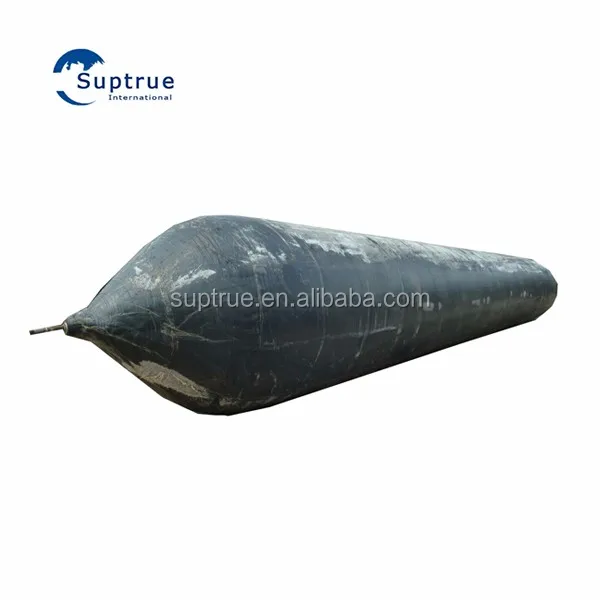

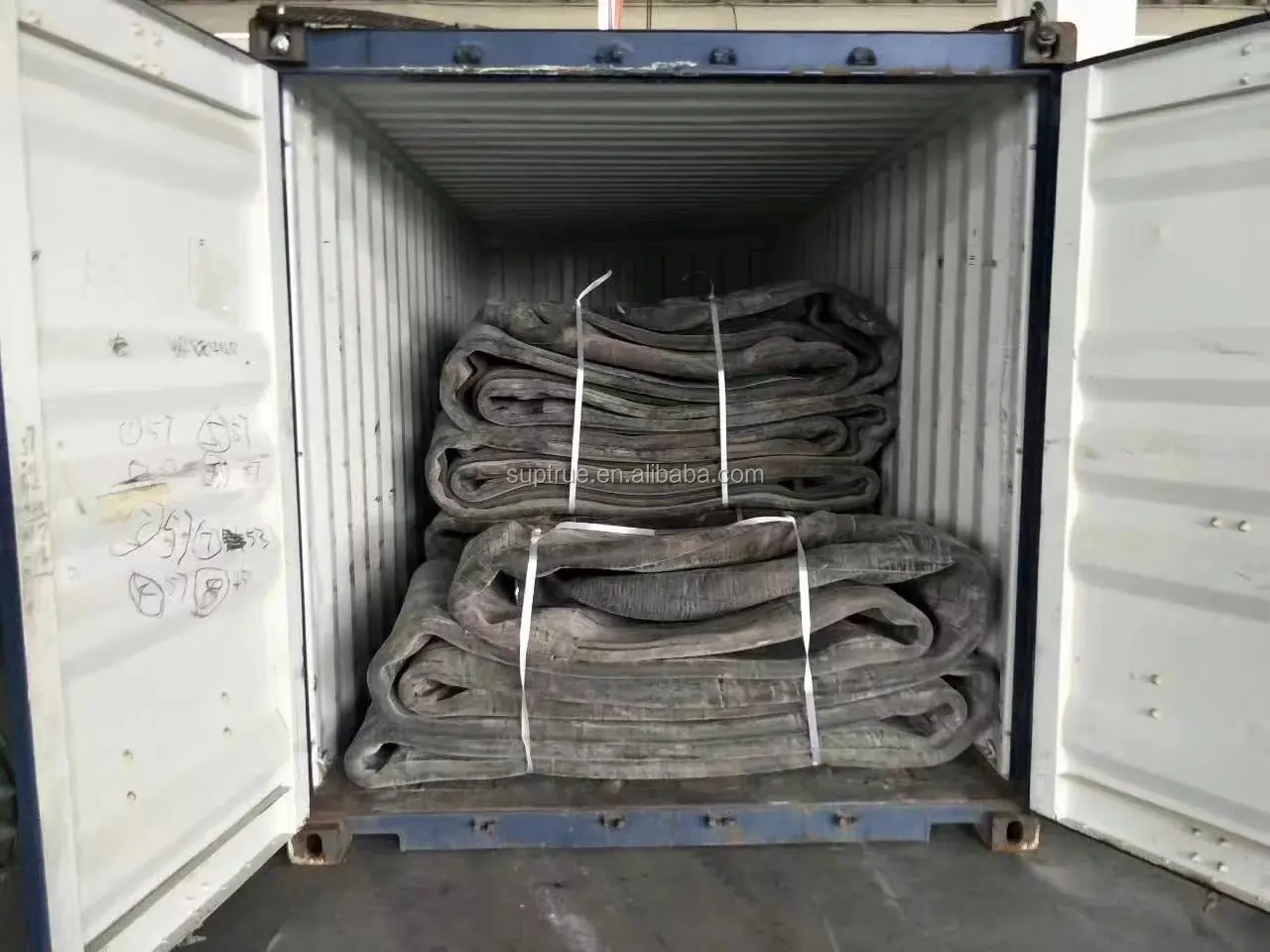

Boat launching and lifting marine airbag
We Suptrue could provide series of marine airbag with different size.So if any inquiry or help,
pls feel free to contact me.
Performance requirement of the materials
1.Performance requirements of Nylon tyre cord fabric
(1),Density of the nylon cord fabric is 95±5 strands per 10 cm.
(2),Tensile strength at break of the nylon cord fabric is ≥ 205.8 N per strand.
2.Mechanical performance of rubber
(1)Mechanical performance of the rubber is listed in the following table.
Table 1. Mechanical performances of the rubber
|
Performance
|
Measurement unit
|
Statistics
|
||
|
Out layer
|
Cord layer
|
Inner layer
|
||
|
Tensile strength
|
Mpa
|
≥20
|
≥20
|
≥22
|
|
Elongation at break
|
%
|
≥500
|
≥650
|
≥800
|
|
Hardness (Hardness Shore A)
|
HA
|
60±5
|
50±5
|
40±5
|
|
Adhesion between layers
|
KN/M
|
|
≥7
|
|
(2)The mechanical performances of the rubber after 16 hours of hot air aging at 70℃ are
listed in the following table.Table 2 Mechanical performances of rubber after hot air aging
|
Performance
|
Measurement unit
|
Reduction rate
|
|
Rate of tensile strength reduction
|
%
|
15
|
|
Rate of ultimate elongation reduction
|
%
|
20
|
|
Hardness (HS A) change
|
HA
|
±10
|

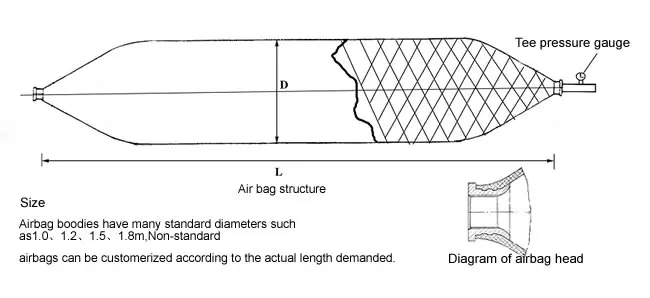

3.Workmanship of ship airbags: whole-wrapping explosion-proof type
4,Models and specifications of nylon cord fabric:
Model:1400dtex/1260D Specifications:vl,v2,strength of a single strand ≥105N
Model:1780dtex/1680D Specifications:v2,strength of a single strand ≥120N
Model:2100dtex/1890D Specifications:v3,strength of a single strand ≥262N
Note:To prevent counterfeit cord fabric, the buyers can choose the strength of cord fabric, whose price rises in proportion to its strength.
