Waterproof 60W handheld rechargeable marine signal light
The scope of application
Applied to daylight signal communication between the ships.
Products character
1.With good quality cast aluminium shell and mechanical flash device
2.Light, convenient to operate and bring.
Production authentication
Approved by CCS (China Classification Society)
Adopt standard
Conform to MS.C.95(72)DECISION and JISF8456-1996

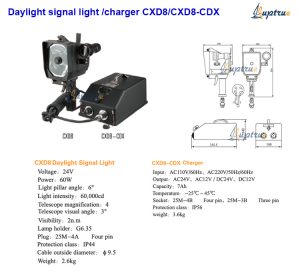

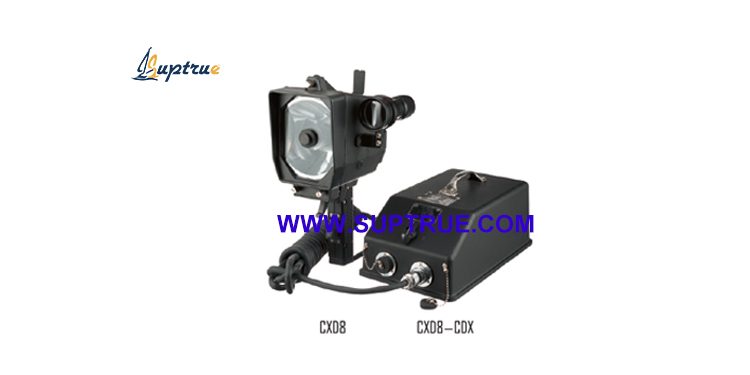

CXD8 Daylight signal light
Light pillar angle: 6°
Light intensity:60000cd
Telescope magnification:4
Telescope visual angle: 3°
Plug: 25M-4A four pin
Cable outside diameter: Ø9.5

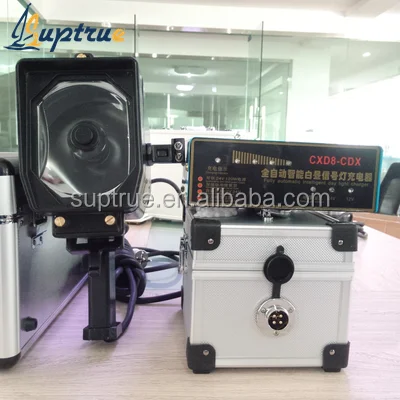

CXD8-CDX charger
Input: AC110v/60Hz, AC220v/50Hz/60Hz
Output: AC24v, AC12v/DC24V, DC12V
Capacity: 7Ah
Temperature: -25℃~45℃

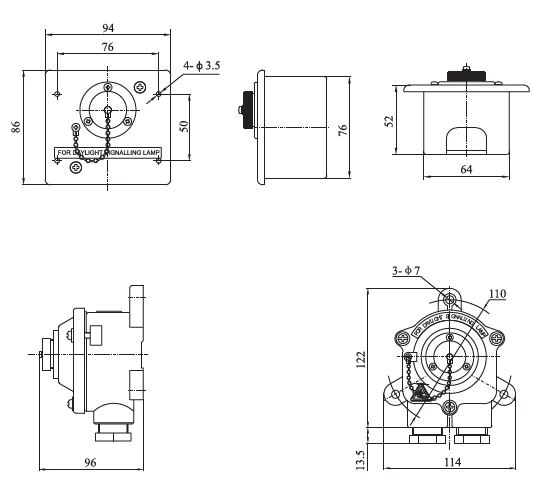

CXD8 Socket
Four pin 25M-4B, Three pin 25M-3B
Protection class: IP56
Weight: 3.6KG
Mark the voltage and frequency when order
|

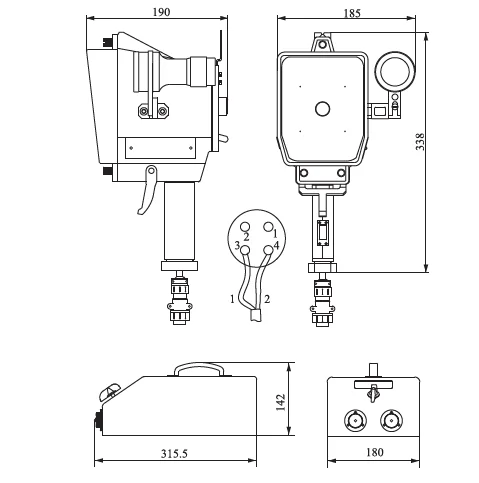

Specification of CXD8 Daylight signal light
|
||||
|
Working rated voltage
|
Visibility
|
Lamp Holder
|
Protection Class
|
Weights
|
|
24V/40W
|
2n.m
|
G6.35
|
IP44
|
5.3kg
|

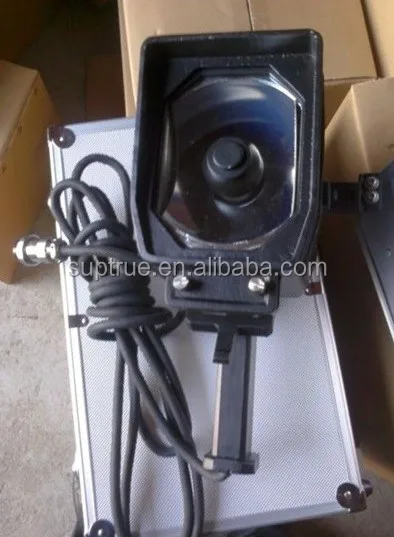

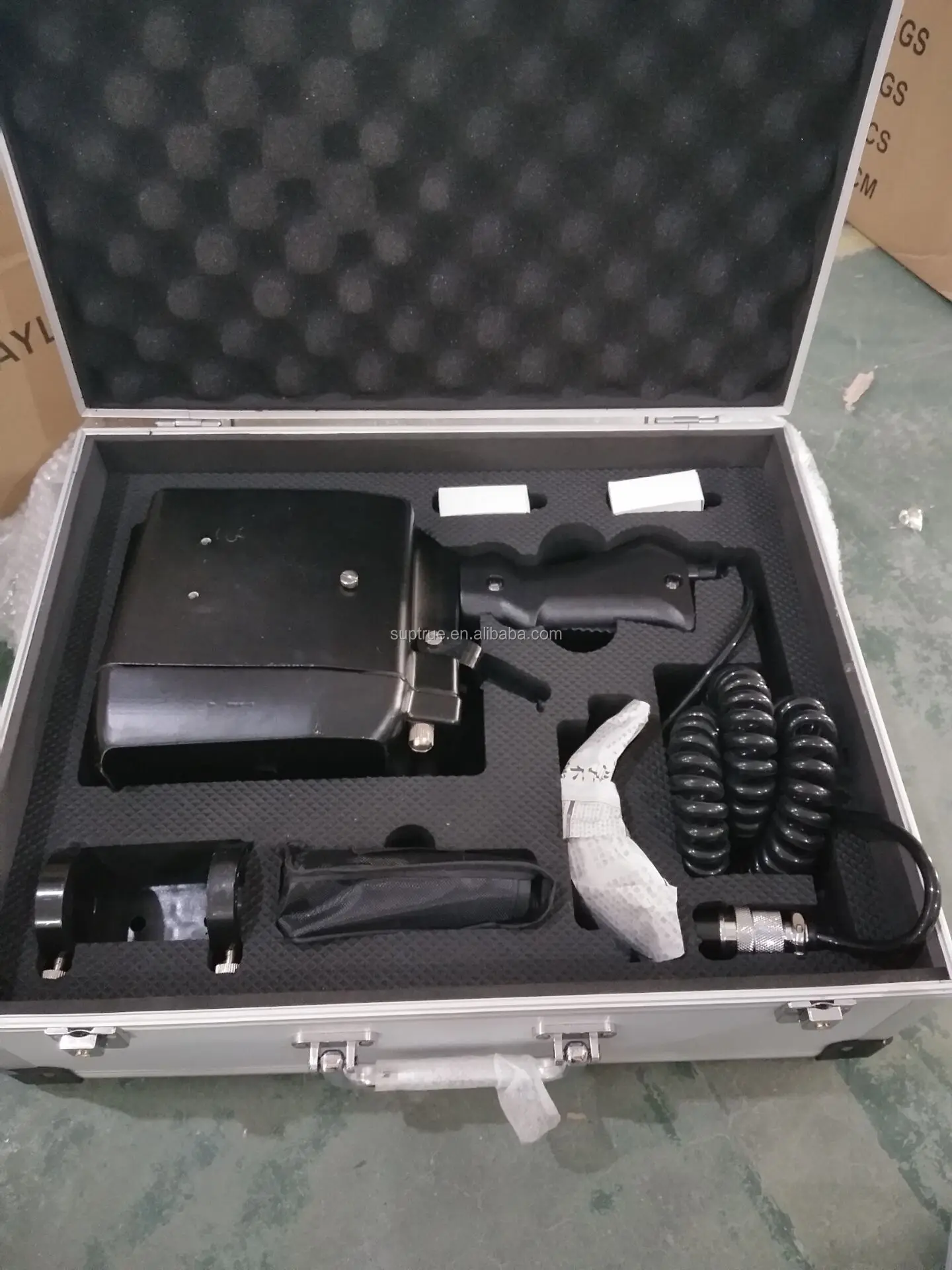

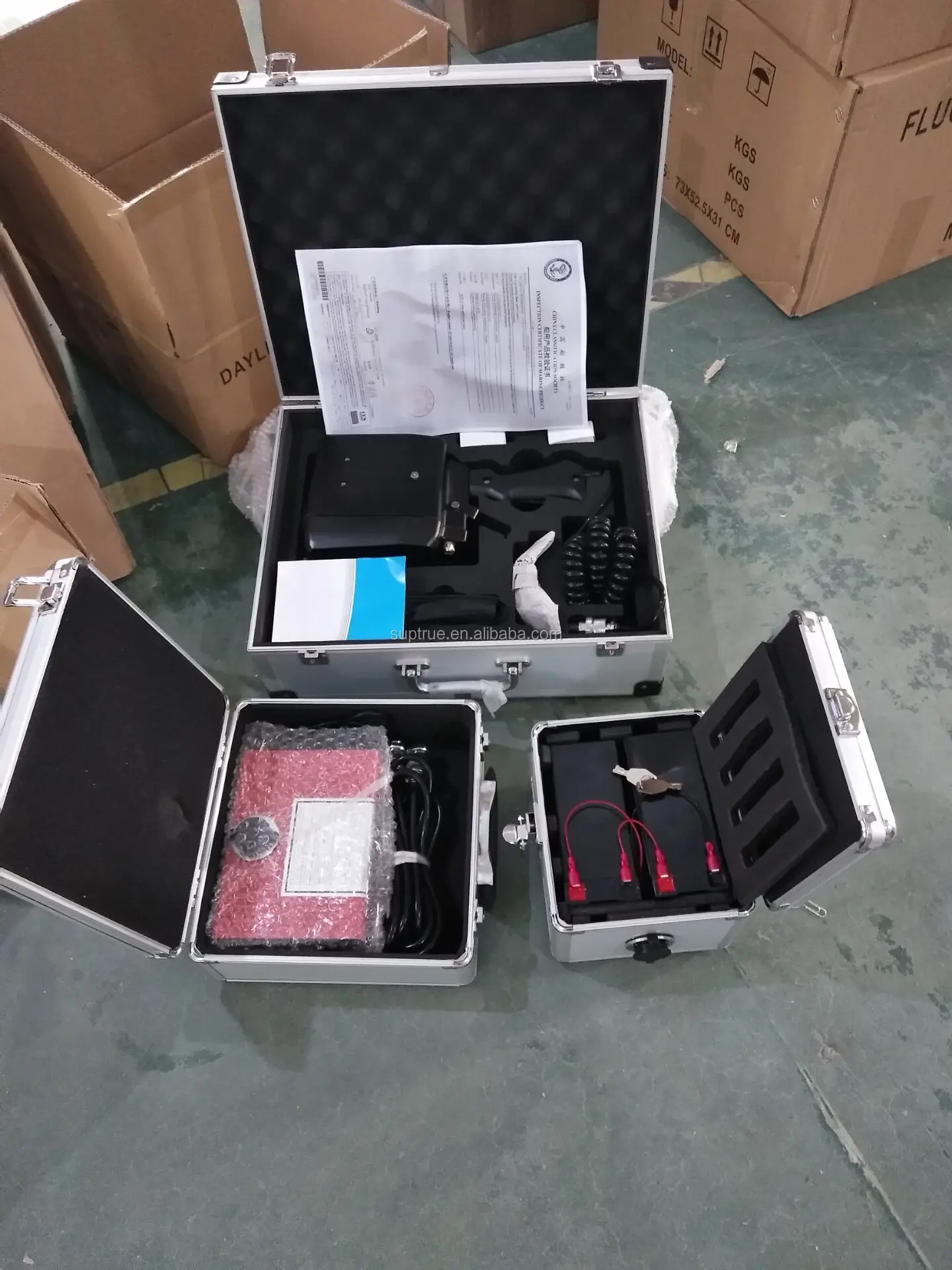

Detailed Image
